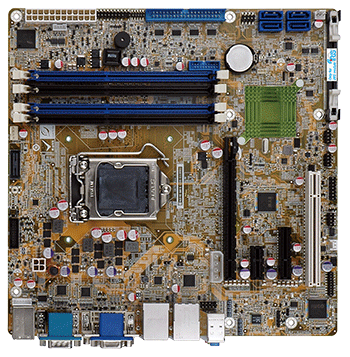

IMB-Q870-i2 |
microATX motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3, Pentium® and Celeron® CPU per Intel® H81, DDR3, VGA, Dual Intel® PCIe GbE, USB 2.0, PCI, COM, LPT, SATA 6Gb/s, HD Audio, iRIS-2400 and RoHS
Catalog / Customs Tariff (HS) code: 84733020 |
Features |
1. LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported
2. Dual-channel DDR3 1333/1600 MHz support up to 16GB
3. Intel® HD Graphics technology integrates high-performance graphics and media processing
4. Supports legacy PCI 32-bit 33/66MHz
5. Ten COM ports, USB 3.0, SATA 6Gb/s and mSATA supported
6. TPM V1.2 hardware security function supported by TPM module
7. IEI One Key Recovery solution allows you to create rapid OS backup and recovery
8. Support IPMI 2.0 via iRIS-2400 module
9. IEI jumper-less function |
Specifications |
| CPU |
LGA1150 Intel® 4th generation Core™ i7/i5/i3, Pentium® or Celeron® processor supported |
| System Chipset |
Intel® Q87 |
| BIOS |
UEFI BIOS |
| System Memory |
Four 240-pin 1600/1333MHz Dual-Channel DDR3 SDRAM Unbuffered DIMM supported up to 32GB |
| Ethernet |
GbE1: Intel® I217LM with Intel® AMT 9.0 support
GbE2: Intel® I210-AT PCIe controller with NCSI support |
| I/O Interface |
5 x RS-232
4 x USB 3.0 (2 on rear, 2 by pin header)
1 x RS-422/485
8 x USB 2.0 (4 on rear, 4 by pin header)
1 x 6-pin wafer for PS/2 KB/MS
4 x SATA 6Gb/s (RAID 0/1/5/10 support)
1 x PS/2 KB/MS connector (rear I/O) |
| Digital I/O |
8-bit digital I/O (4-bit input, 4-bit output) |
| Super I/O |
Fintek F81866 |
| TPM |
1 x 20-pin (2x10) header |
| SMBus |
1 x 4-pin (1x4) wafer |
| Audio |
Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic) |
| Display Interfaces |
VGA (up to 1920x1200 @ 60 Hz)
DVI-D (up to 2560x1600 @ 60 Hz)
HDMI (up to 2560x1600 @ 60 Hz)
iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 3840x2160 @60 Hz) |
| LAN |
2 x 2-pin for LAN1 LED, LAN2 LED |
| Expansion |
1 x PCIe x16 slot (Gen 3)
1 x PCIe x4 slot
1 x PCIe x1 slot
1 x PCI slot |
| Watchdog Timer |
Software programmable, support 1~255 sec. system reset |
| Power Supply |
ATX power supply |
| Power Consumption |
3.3V@0.53A, 5V@4.96A, 12V@0.12A, Vcore_12V@3.95A, 5VSB@0.18A (Intel® Core™ i7-4770K 3.90 GHz CPU with 16GB (4x4GB) 1333MHz DDR3 memory) |
| Graphic |
Intel® HD Graphics Gen 7.5 supports DX11.1 and OpenCL 1.2, OpenGL 3.2 Full MPEG2, VC1, AVC Decode |
| Operating Temperature |
-20°C ~ 60°C |
| Humidity |
5% ~ 95%, non-condensing |
| Dimensions |
244mm x 244mm |
| Weight |
GW:1200g, NW: 700g |
| Front Panel |
1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button) |
| I2C |
1 x 4-pin (1x4) wafer |
| Front Audio |
1 x 10-pin (2x5) header |
| Fan Connector |
1 x 4-pin CPU fan connector
2 x 3-pin system fan connector |
| iRIS Remote Management Module |
1 x iRIS-2400 slot |
| LAN LED |
2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED |
|
Ordering Information |
| Part No. |
Description |
| IMB-Q870-i2-R10 |
Micro ATX Motherboard supports 22nm LGA1150 Intel® Core™ i7/i5/i3/Pentium® and Celeron® CPU per Intel® Q87, DDR3, HDMI/ DVI-D/ VGA / DP, Dual Intel® PCIe GbE, USB 3.0, Audio, SATA 6Gb/s, Six Serial Ports, iRIS-2400 and RoHS |
| iRIS-2400-R10 |
IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface |
| 19800-003100-200-RS |
Dual Ports USB Cable with Bracket |
| 32205-003800-100-RS |
RS-422/485 cable, 200mm |
| 32205-001203-100-RS |
RS-232 cable, 40-pin to four DB-9 |
| 32102-000100-200-RS |
SATA power cable, MOLEX 5264-4P to SATA15P |
| 19800-000075-RS |
PS/2 KB/MS Y-cable with bracket, 220mm |
| 19800-000049-RS |
LPT cable |
| CF-1156A-RS-R11 |
High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73W |
| CF-1156E-R11 |
High performance LGA1155/LGA1156 cooler kit, 95W |
| DP-DP-R10 |
DisplayPort to DisplayPort converter board (For iEi IDP connector) |
| DP-LVDS-R10 |
DisplayPort to 24 bit dual channel LVDS converter board (For iEi IDP connector) |
| DP-HDMI-R10 |
DisplayPort to HDMI converter board (For iEi IDP connector) |
| DP-DVI-R10 |
DisplayPort to DVI-D converter board (For iEi IDP connector) |
| DP-VGA-R10 |
DisplayPort to VGA converter board (For iEi IDP connector) |
| TPM-IN01-R11 |
20-Pin Infineon TPM module, software management tool, firmware V3.1 |
| 32205-003800-100-RS |
RS-422/485 cable, 200mm |
|
Packing List |
| 1 * IMB-Q870-i2 Single Board Computer |
2 * SATA Cable (P/N:32000-062800-RS) |
| 1 * I/O shielding (P/N:45014-0046C0-00-RS) |
1 * Utility CD |
| 1 * QIG |
|
|
|
|
|
|
|
|
|
|
|
|
